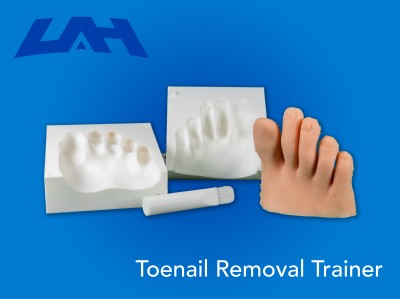

Toe Nail Removal Trainer

Toe Nail Removal Trainer

Ingredients

  • 108 ml Dragon Skin Part A (Smooth-on)
  • 108 ml Dragon Skin Part B (Smooth-on)
  • 54 ml Dragon Skin Part S (Smooth-on)
  • Mold Release (Smooth-On)
  • Silc Pig Flesh Pigment (Smooth-On)
  • Plastic Cups
  • Stirrers
  • Scale
  • Baby Powder
  • 3d Printed Toe Nail Removal Mold (STL in downloads)
  • 3d printed TPU Toenail Insert (STL in downloads)

Instructions

  • Assemble both sides of the mold and insert the top piece into its aligning holes with the peg positioned in the big toe.
  • Thoroughly spray mold release into the mold, making sure to get all the crevices and corners
  • Put plastic cup on scale and tare the scale
  • Pour 108 ml of Part B into the cup
  • Insert desired pigment into the cup until you reach the desired skin tone
  • Use a stirrer and mix the pigment and Part B together (leave stick in the cup)
  • Tare the scale again
  • Pour 54 ml of Part S into the cup. Thoroughly mix together until fully combined, making sure you scrape down the sides of the cup.
  • Tare the scale again and spray the mold with mold release a second time.
  • Pour in 108 ml of Part A, and thoroughly mix making sure there are no clumps or pockets of unmixed dragon skin.
  • Pour the mixture into the mold. There is a 12 minute pot time before the mixture starts curing.
  • Let the part cure completely for 40 minutes.
  • Pull the top insert out of the mold and part then separate the mold into halves to pull the part out.
  • Use a paper towel to wipe off any mold release residue left on the part.
  • Once dry, put baby powder on the foot to remove tackiness and to give a flesh-like feel.
  • Cut a hole in the nail bed of the big toe until you hit the cavity left in the part
  • Insert the toenail insert into the hole and pull it through the hole in the nail bed.
  • After use of toenail, dispose of old part and insert a new Toenail.
